Screw Pile Torque Heads

Overview

About Screw Pile Torque Heads

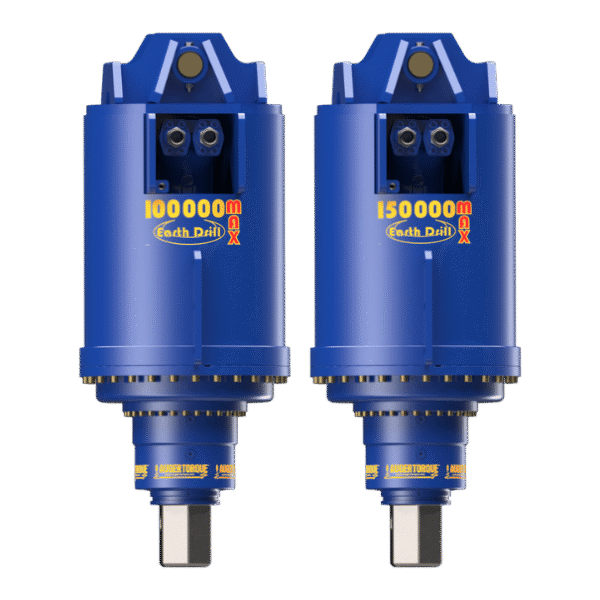

The Auger Torque 100,000MAX & 150,000MAX Screw Pile Torque Heads herald a new era in the world of screw piling applications.

After many requests from customers for an auger & screw pile drive in the 100,000-150,000 Nm range over the years we are pleased to meet this demand by adding this new heavy duty earth drill range we are proud to paint in our famous blue colour. Large main shaft bearings, a 1 piece drive shaft with NDS technology, an axial piston motor and finally the oversize 150mm HEX drive shaft will make this your drive of choice. When the going gets tough, whether you are drilling wide or deep or you are trying to get through some rock with a core barrel this range of drives you should be top of your list.

Features
- 150mm Hex Shaft

  The driveshaft is crucial for reliability and it goes without saying that the bigger the better applies here. A shaft is always stronger when machined as a hex and the 150mm diameter is the largest in the industry, especially when looking at compatibility on machine as small as 21T.
- Axial Piston Motor

  Axial Piston Motors allow us to run a single speed motor. By using an axial piston motor with our drive we can have a high speed motor but still achieve high torques through the gearbox multiplication. At maximum ﬂow we achieve 15 rpm.
- Single Piece Non-Dislodgement Shaft

  As standard with all of our auger & screw pile drives, our patented single-piece non-dislodgement shaft is of course a standard feature. We are so confident in this must have safety feature that we are covering it with a lifetime warranty.
- Epicyclic gearbox

  Torque is amplified by using the unique Auger Torque planetary gearbox. This system allows the motors output torque to be multiplied with extreme efficiency as well as ensuring the durability and reliability you need.
Resources
Filter By

Documents

Videos

Photos

Manuals
Earth Drill 100000Max Product Information Sheet

Screw Pile Torque Heads Product Information Sheet

Earth Drill 150000Max Product Information Sheet

Watch our video

Earth Drill 100,000MAX
Warranty

12 MONTH WARRANTY

Click here to find out more about Auger Torque’s product warranties or register your product online.
